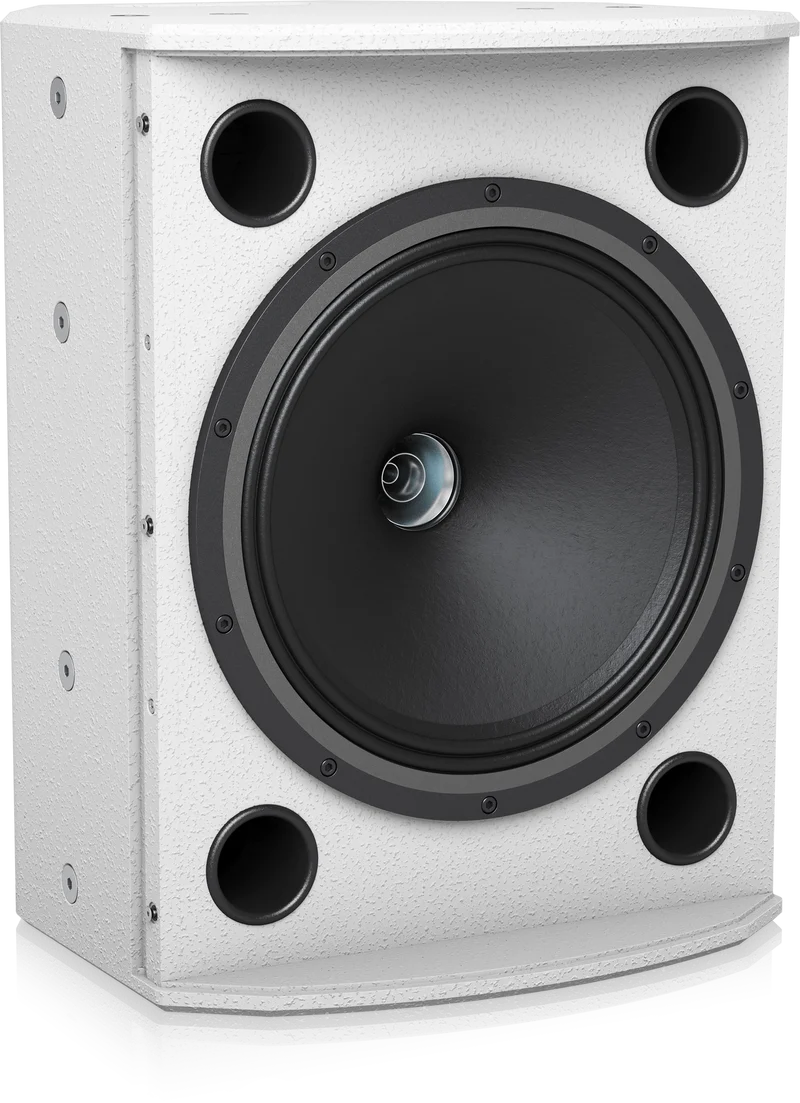

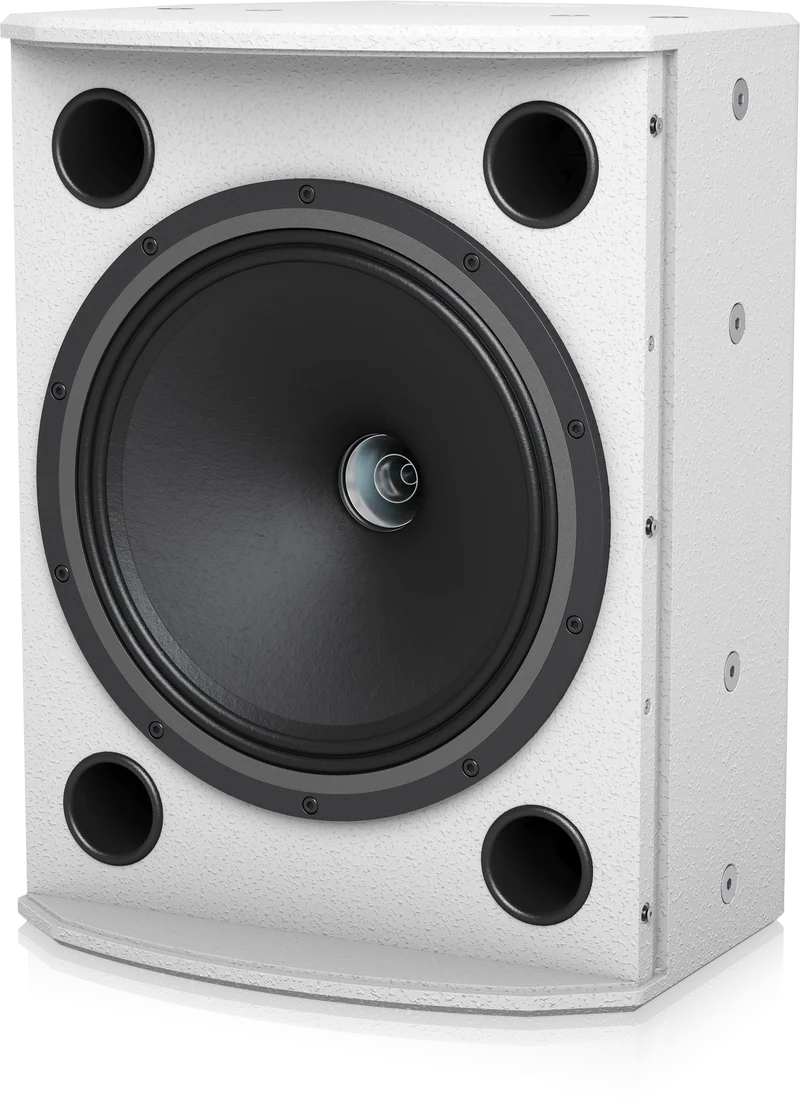

Tannoy VXP12-WH 1600W 12" Dual Concentric Powered Sound Reinforcement Loudspeaker with Integrated Lab Gruppen IDEEA Class-D Amplification (White) - NEW

Tannoy VXP12-WH 1600W 12" Dual Concentric Powered Sound Reinforcement Loudspeaker with Integrated Lab Gruppen IDEEA Class-D Amplification (White) - NEW Main Features :

• Full range multi-purpose powered sound reinforcement loudspeaker for portable and installation applications

• 1,600 Watt power featuring Lab Gruppen IDEEA electronics Class-D amplification

• 12" Dual Concentric full range driver for point source phase coherence

• Tightly controlled 90" dispersion for optimum coverage and forward projection

• Ideal for FOH, floor monitor and side fill applications

• Switchable full range or high pass filter operation

• Vented and internally braced plywood enclosure

• Finished with hard wearing semi matt white paint

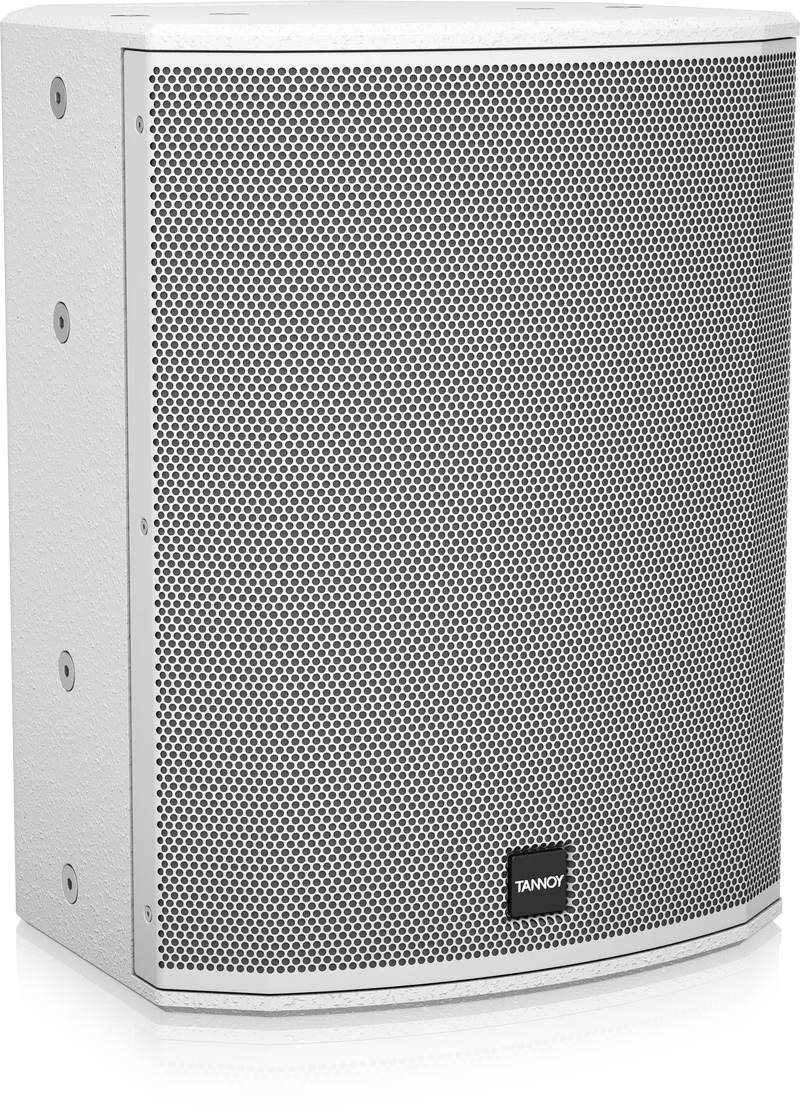

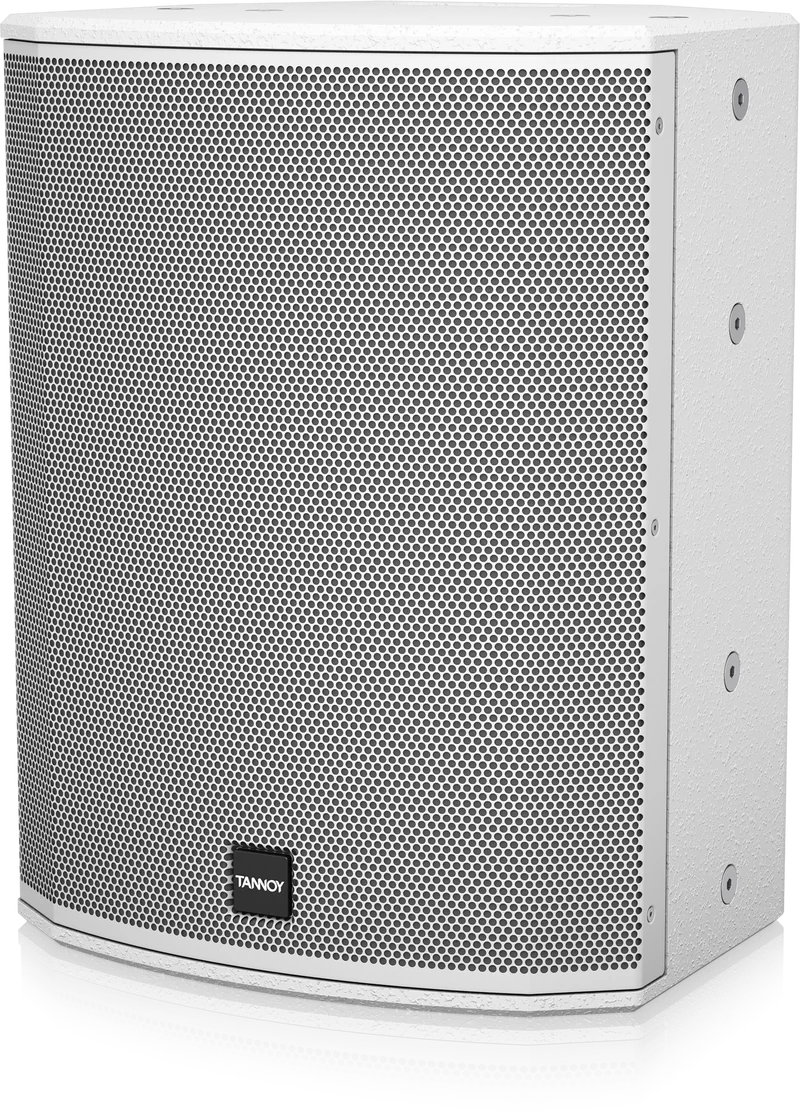

• Rugged powder coated perforated steel mesh grille

• Blanking plate for optional VTH pole mount

• Versatile mounting via optional custom designed hardware

• Fully balanced input and link output on Neutrik* XLR connectors

• Neutrik powerCON* for a secure locking mains power connection

• Designed and engineered in the U.K.

VXP 12-WH

The VXP 12-WH Dual Concentric Full Range Loudspeaker boasts an exceptional performance-to-size ratio – plus includes
LAB GRUPPEN IDEEA Class-D amplification. VXP 12-WH provides a compact, yet punchy and sonically articulate solution for small-scale performance sound reinforcement, as well as more demanding background music and high-intelligibility speech applications where clarity and natural vocal reproduction are paramount. Thanks to its twin driver design and flexible mounting options, the VXP 12-WH is also ideally suited for use complimenting much larger systems, making it an excellent choice for both installed and
portable applications.

Class-D – Massive Power, Perfect Sound

Equipped with a very efficient and lightweight LAB GRUPPEN IDEEA Class-D power amplifier, the VXP 12-WH provides an impressive 1,600 Watts of output power in a highly portable and lightweight package. Class-D amplification makes all the difference, offering the ultimate in energy efficiency and eliminating the need for heavy power supplies and large heat sinks.

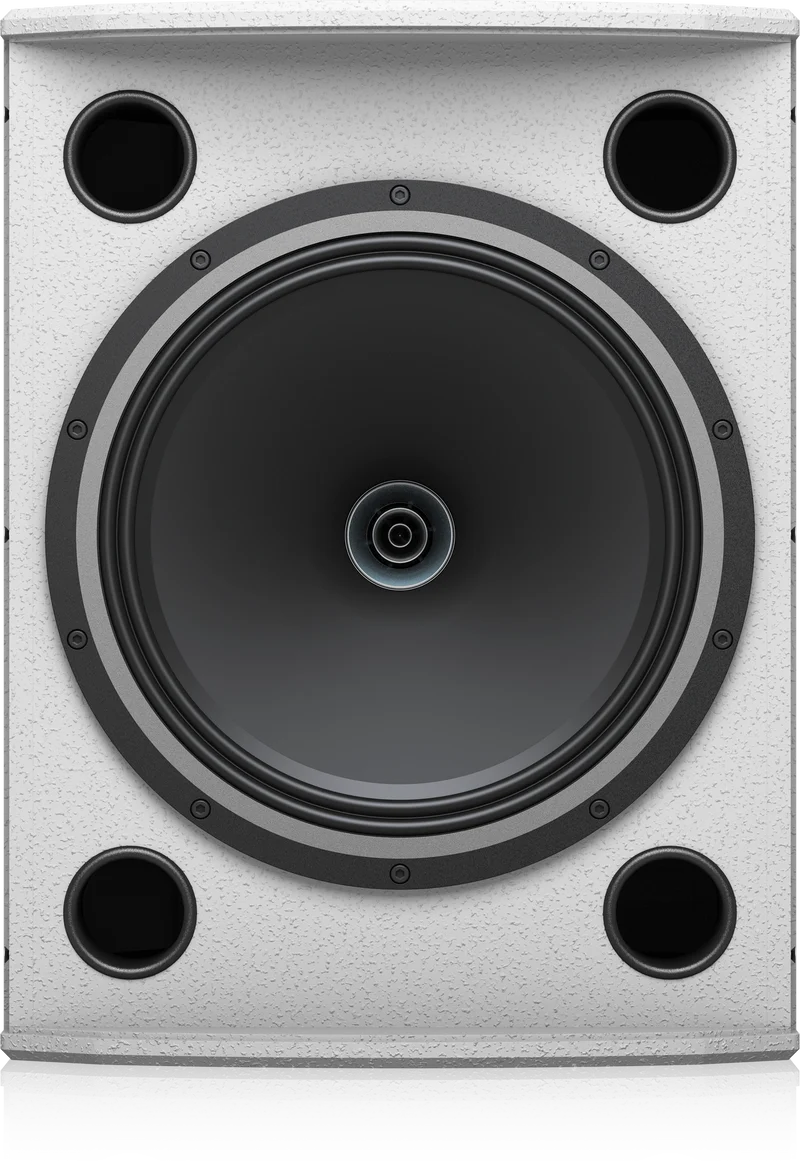

Dual Concentric Driver

The 1,600-Watt 305 mm (12 ") version of TANNOY’s VXP Series exclusive point source loudspeakers, VXP 12-WH’s Dual Concentric driver ensures high power output with high sensitivity and exceptional efficiency. VXP 12-WH delivers precise 90º dispersion for optimum coverage, exceptional forward gain plus the added benefit of improved low-mid extension from the twin
driver configuration.

Performance Applications

VXP 12-WH’s trapezoidal enclosure design provides a multitude of placement options including: FOH, floor monitor, delay, and more. A blanking plate for optional VTH pole mounting is provided for placement atop a subwoofer in small-scale portable PA applications. Mounting options include horizontal and vertical mounting yokes (available separately), an Omnimount* for wall and ceiling installation, and items to facilitate pole-mounting. All hardware has been tested and certified for a greater than 5:1 safety ratio –
giving installers complete peace of mind.

Construction

Finished in a hard wearing semi matt white paint, the vented and internally braced cabinet is constructed from a combination of

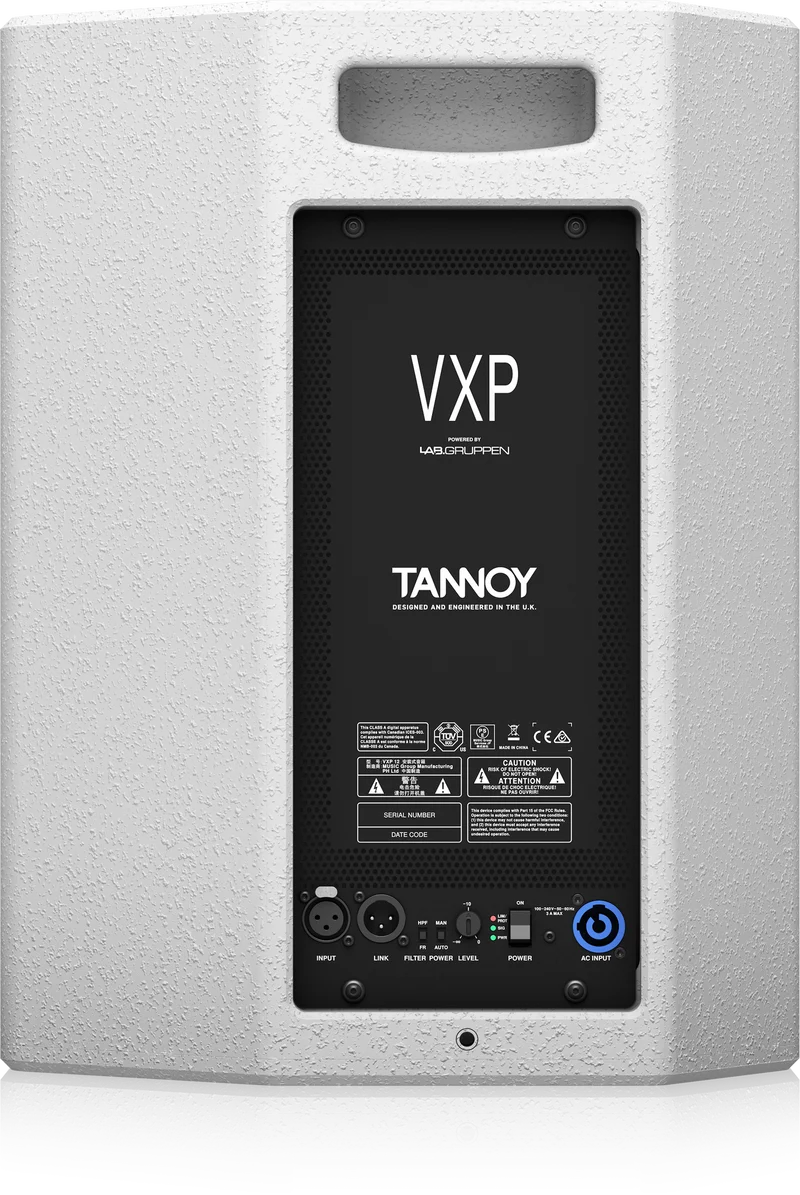

15 mm (5⁄8") and 18 mm (¾ ") plywood – and includes a rugged powder coated perforated steel mesh grille. The rear panel connector plate carries a switch for selecting between full range (FR) or high pass filter (HPF) operation, and fully balanced input and link output on Neutrik* XLR connectors for input and link connections to additional powered enclosures. A secure locking Neutrik powerCON* connector delivers mains power to the electronics, with a selection switch for either manual (MAN) or auto (AUTO) operation.
VXP 12-WH loudspeakers are optimized for use with LAB GRUPPEN amplifiers, orLAKE LM Series controllers. A full range of DSP settings to suit many configurations are provided for free download at tannoy.com.

Specifications

System

Frequency response	70 Hz - 25 kHz ±3 dB 58 Hz - 30 kHz -10 dB
Nominal dispersion	75° conical @ -6 dB points
Directivity factor (Q)	9.7
Directivity index (DI)	9.9

Power handling (IEC)

Passive	400 W continuous, 1,600 W peak
Bi-amp	LF: 400 W continuous, 1,600 W peak HF: 80 W continuous, 320 W peak
Sensitivity	99 dB (1 W @ 1 m)

Maximum SPL

Passive	125 dB continuous, 131 dB peak
Bi-amp	LF: 126 dB continuous, 132 dB peak HF: 125 dB continuous, 131 dB peak

Impedance

Passive	8 Ω
Bi-amp	8 Ω 8 Ω
Crossover Type	Passive / Bi-amp switchable
Components	1 x 15" (380 mm) constant directivityPowerDual

Enclosure

Connectors

2x Neutrik speakON* NL4 1 x barrier strip terminals

Wiring

Passive	Pins 1+ / 1- Input, Pins 2+ / 2- Link
Bi-Amp	Pins 1+ / 1- LF, Pins 2+ / 2- HF
Dimensions H x W x D	591 x 451  x 421 mm (23.3  x 17.8 x 16.6")
Net weight	25.5 kg (56.2 lbs)
Construction	18 mm (3/4") enclosure / 18 mm (3/4") front, plywood, vented and internally braced
Finish	Semi matt black paint (white optional)
Grille	Powder coated perforated steel
Flying hardware	M10 x 8 flying inserts (portrait or landscape mounting) M10 x 8 yoke bracket inserts 2 x Intergrip carrying handles Blanking plate for optional VTH pole mount Compatible with industry standard brackets M6 x 4 inserts

Accessories

Yoke Horizontal VX15 Yoke Vertical VX15 VTH Top Hat

*independent of limiters and driver protection circuits†Neutrik and powerCON speakON are registered trademarks of Neutrik AG.†Only qualified personnel are allowed to modify the AC-Main cord and to adhere to all applicable national standards.
