Tannoy VXP6-WH 1,600 Watt 6" Dual Concentric Powered Sound Reinforcement Loudspeaker with Integrated LAB GRUPPEN IDEEA Class-D Amplification(White)

1600 WATT 6" DUAL CONCENTRIC POWERED SOUND REINFORCEMENT LOUDSPEAKER WITH INTEGRATED LAB GRUPPEN IDEEA CLASS-D AMPLIFICATION

MAIN FEATURES:

• Full range multi-purpose powered sound reinforcement loudspeaker for portable and installation applications

• 1,600 Watt power featuring Lab Gruppen IDEEA electronics Class-D amplification

• 6" Dual Concentric full range driver for point source phase coherence

• Tightly controlled 90° dispersion for optimum coverage and forward projection

• Ideal for FOH, floor monitor, delay and stage front fill applications

• Switchable full range or high pass filter operation

• Vented and internally braced plywood enclosure

• Finished with hard wearing semi matt white paint

• Rugged powder coated perforated steel mesh grille

• M6 pole mount socket for small-scale portable PA

• Optional horizontal mounting yokes (available separately)

• Fully balanced input and link output on Neutrik* XLR connectors

• Neutrik powerCON* for a secure locking mains power connection

VXP 6-WH

The VXP 6-WH may be one of the smaller Dual Concentric full range loudspeakers in the VXP range, but it boasts an exceptional performance-to-size ratio – plus includes LAB GRUPPEN IDEEA Class-D amplification. VXP 6-WH provides a compact, yet punchy and sonically articulate solution for small-scale performance sound reinforcement, as well as more demanding background music and high-intelligibility speech applications where clarity and natural vocal reproduction are paramount. Thanks to its twin driver design and flexible mounting options, the VXP 6-WH is also ideally suited for use complimenting much larger systems, making it an excellent choice for both installed and portable applications.

Class-D – Massive Power, Perfect Sound

Equipped with a very efficient and lightweight LAB GRUPPEN IDEEA electronics Class-D power amplifier, the VXP 6-WH provides an impressive 1,600 Watts of output power in a highly portable and lightweight package. Class-D amplification makes all the difference, offering the ultimate in energy efficiency and eliminating the need for heavy power supplies and large heat sinks.

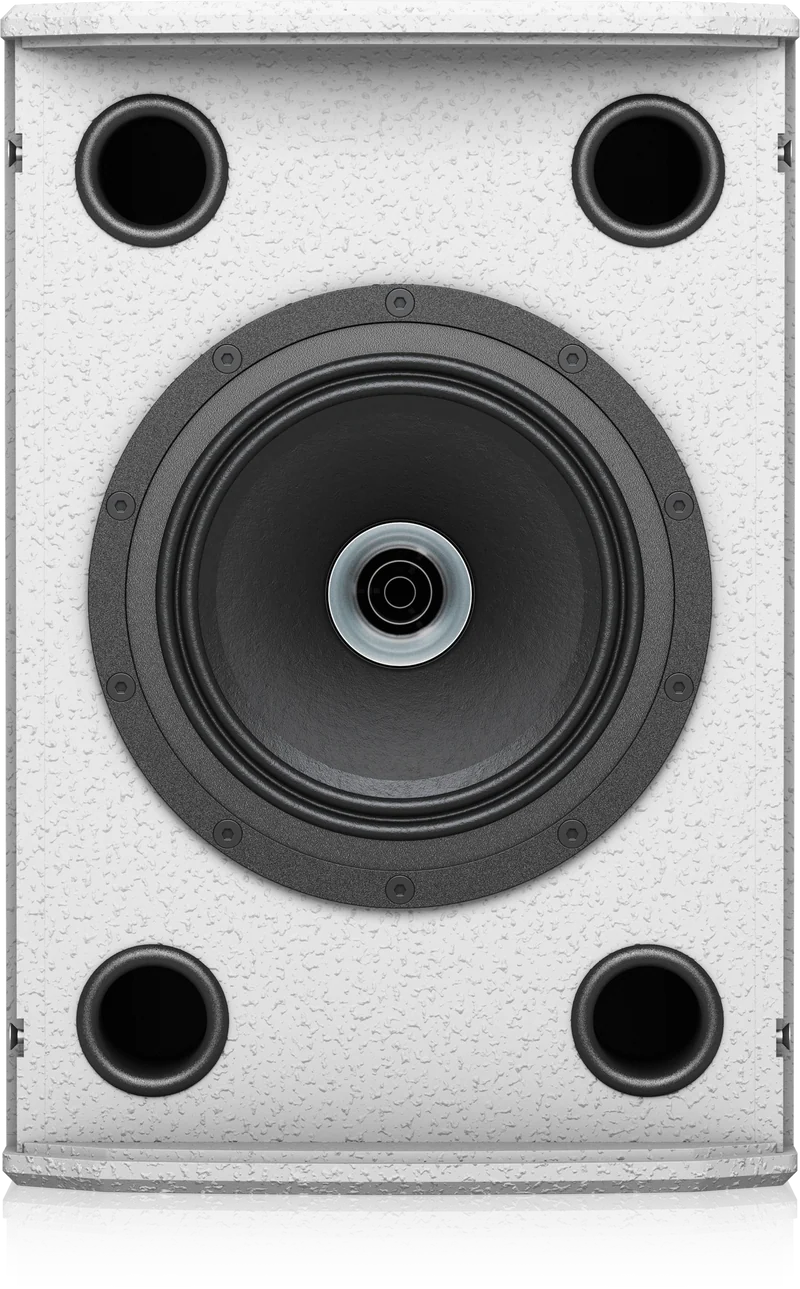

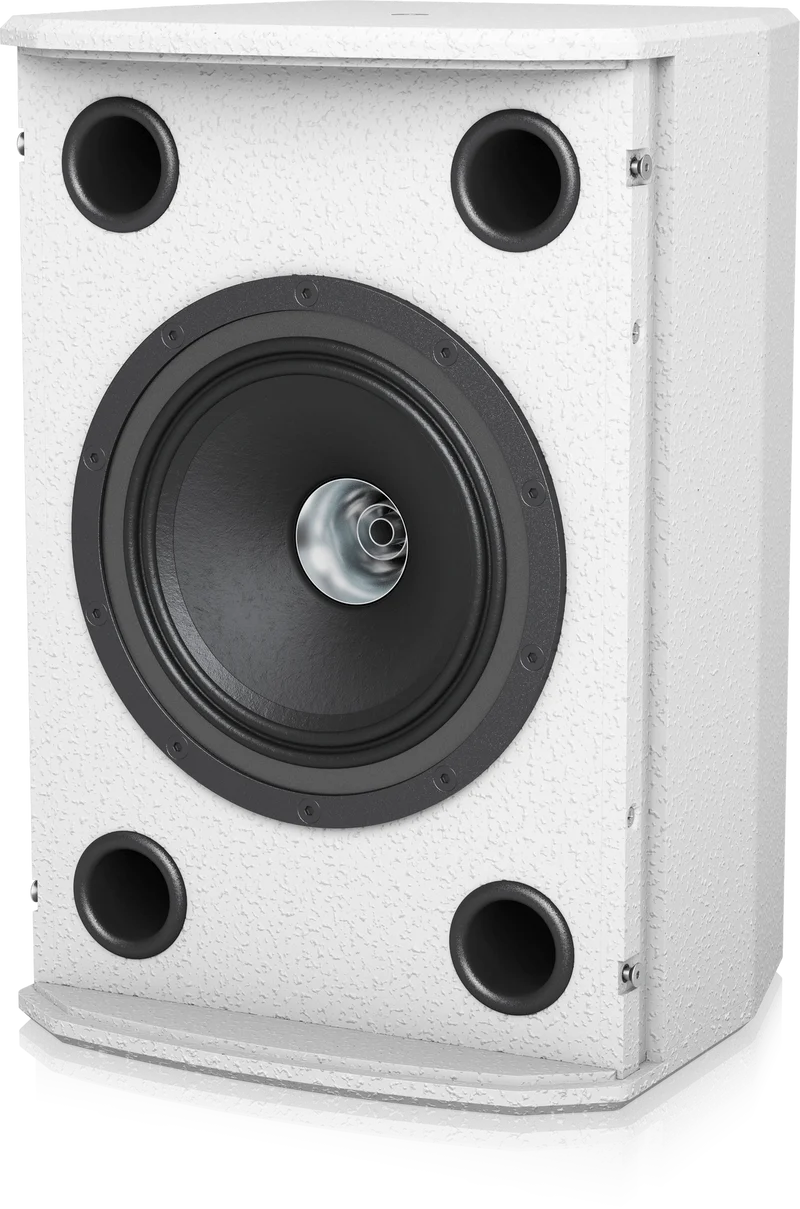

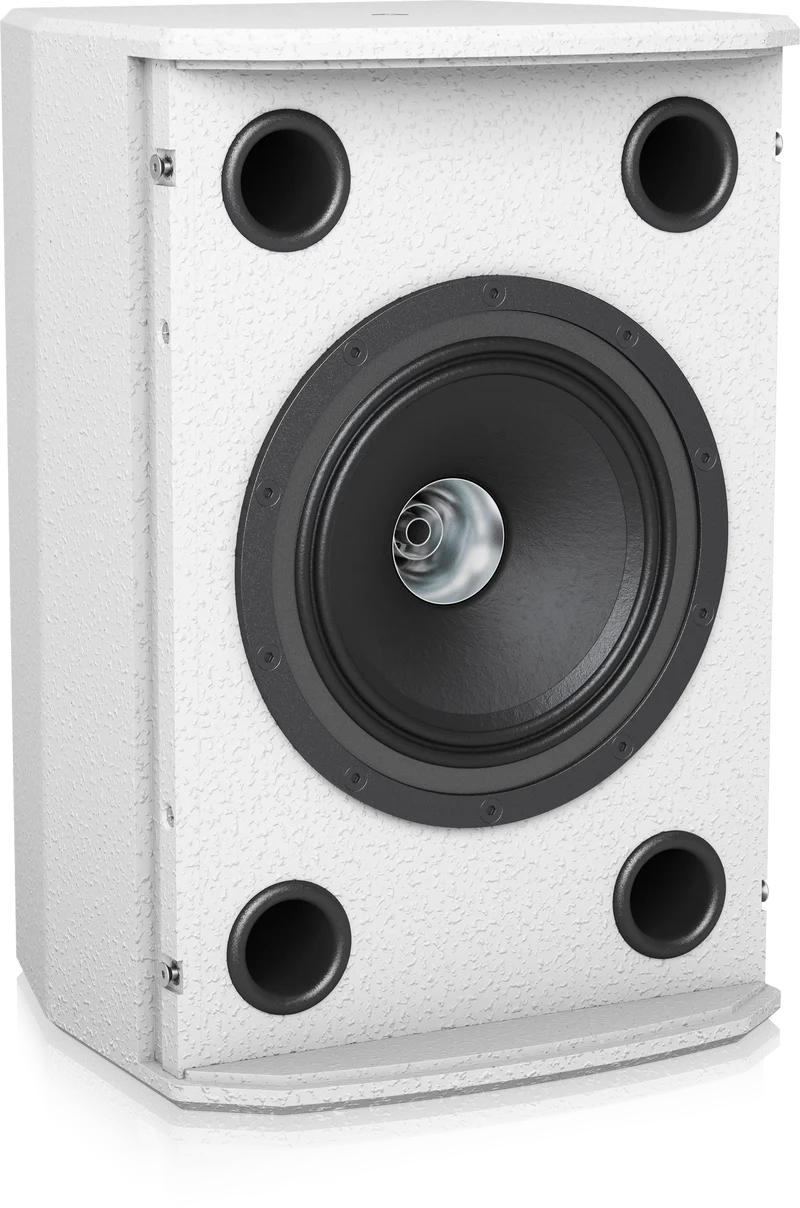

Dual Concentric Driver

The 1,600-Watt 150 mm (6") version of TANNOY’s VXP Series point source loudspeakers, VXP 6-WH’s constant directivity Dual Concentric drive unit technology ensures high power output with high sensitivity and exceptional efficiency. VXP 6-WH delivers precise 90º dispersion for optimum coverage, exceptional forward gain plus the added benefit of improved low-mid extension from the twin driver configuration.

Performance Applications

VXP 6-WH’s trapezoidal enclosure design provides a multitude of placement options including: small scale FOH, floor monitor, delay and stage front fill deployment, and more. A blanking plate for optional VTH pole mounting is provided for placement atop a subwoofer in small-scale portable PA applications. An extensive range of optional VXP 6-WH high performance steel mounting hardware (available separately) includes a horizontal yoke bracket, an Omnimount* for wall and ceiling installation, and items to facilitate pole-mounting. All hardware has been tested and certified for a greater than 5:1 safety ratio – giving installers complete peace of mind.

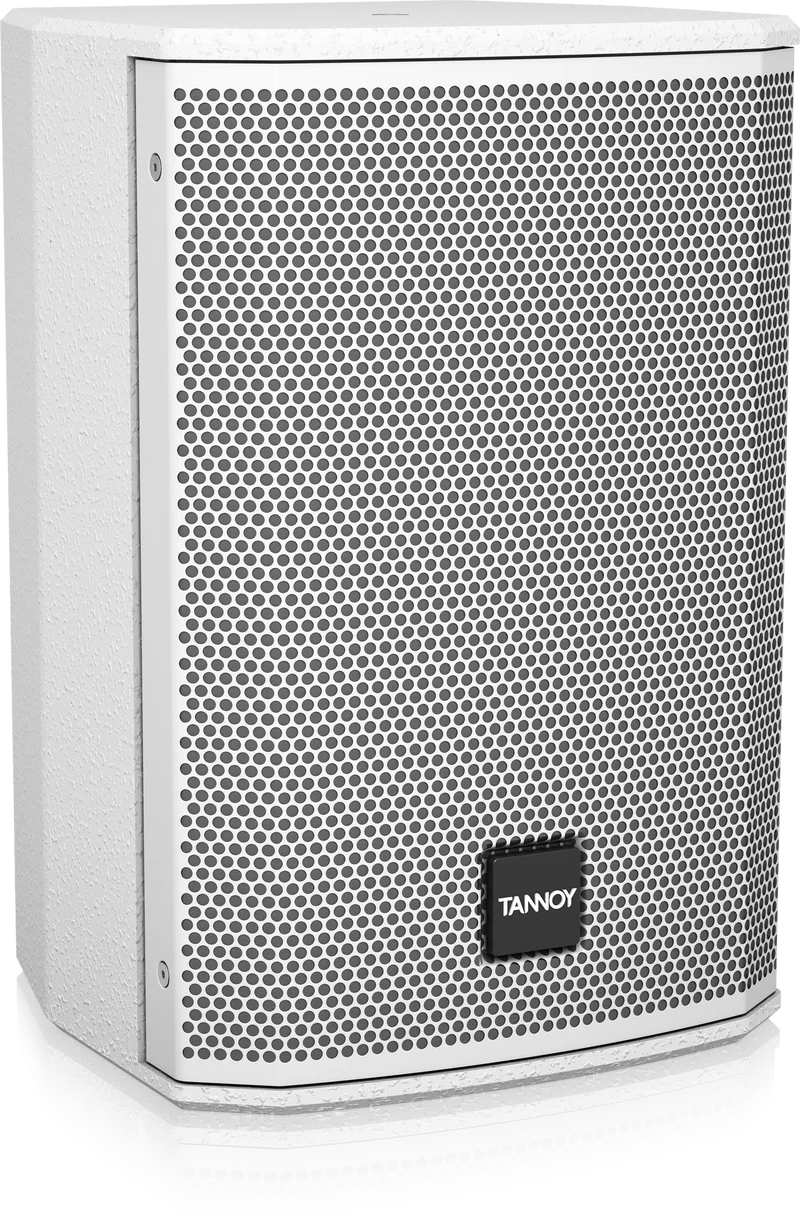

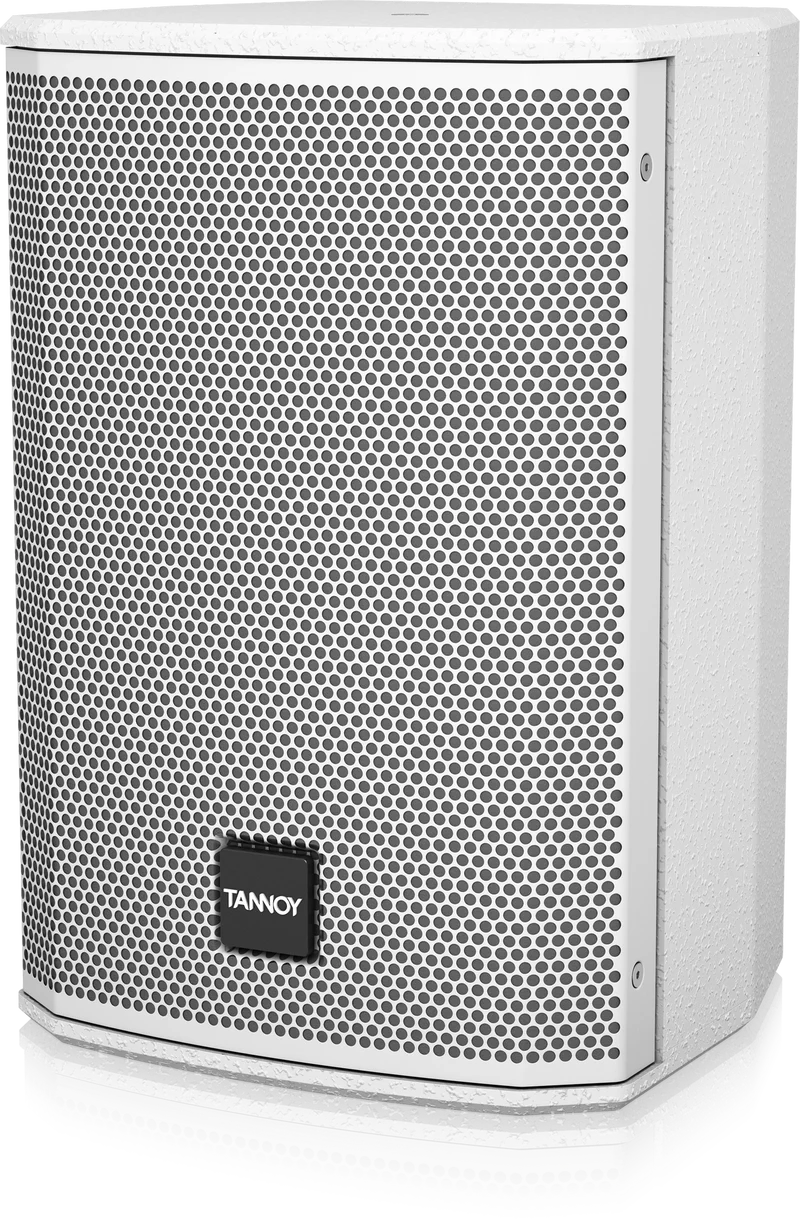

Construction

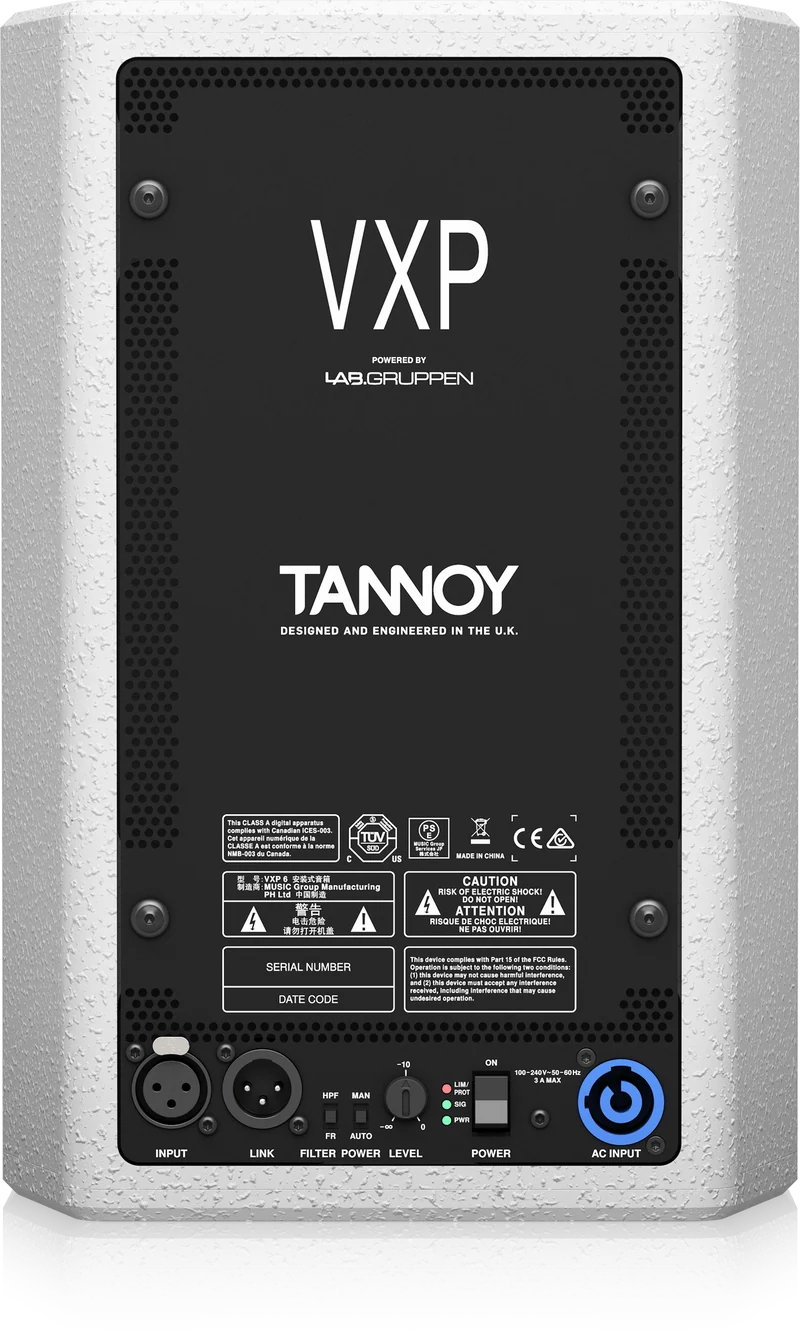

Finished in a hard wearing semi matt white paint, the vented and internally braced cabinet is constructed from 12 mm (1/2") birch plywood – and includes a rugged powder coated perforated steel mesh grille. The rear panel connector plate carries a switch for selecting between full range (FR) or high pass filter (HPF) operation, and fully balanced input and link output on Neutrik* XLR connectors for input and link connections to additional powered enclosures. A secure locking Neutrik powerCON* connector delivers mains power to the electronics, with a selection switch for either manual (MAN) or auto (AUTO) operation. VXP 6-WH loudspeakers are optimized for use LAKE LM Series controllers, and a full range of DSP settings to suit many configurations is available for free download at tannoy.com

Specifications

System

Frequency response (Full range mode)	88 Hz - 35 kHz ±3 dB80 Hz - 45 kHz -10 dB
Frequency response (Hi-pass mode)	120 Hz - 35 kHz ±3 dB100 Hz - 45 kHz -10 dB
Nominal dispersion	90° conical @ -6dB point
Directivity factor (Q)	5.6
Directivity index (DI)	7
Dynamic range	106 dB
Maximum SPL	123 dB peak
Crossover type	Passive 1.6 kHz with dynamic HF protection
Transducers	150 mm (1 x 6") constant directivityDual Concentric™

Amplifier

Maximum output power*	1600 W
Type	Class-D
Protection	Output current limiter, clip limiter, brownout protection and recovery, thermal

Connectors

Input	1 x XLR, balanced
Input impedance	10 kΩ unbalanced,20 kΩ balanced
Maximum input level for clip	+4.5 dBu (hard clip at+14.5 dBu input signal)
Link	1 x XLR
Mains Supply	Neutrik powerCON 20A†

Controls

Level	Recessed potentiometer
Filter	Hi-pass (HPF)/ full range (FR), switchable
Power mode	Manual (MAN)/ auto (AUTO), switchable

Power Supply

Type	Switch-mode autorange power supply
Mains voltage	100-240 V~, 50/60 Hz
Power consumption	60 W @ 1⁄8 max power

Enclosure

Dimensions (HWD)	334 x 226  x 216 mm (13.1  x 8.9 x 8.5")
Net weight	7.2 kg (15.9 lbs)
Construction	12 mm (½ ") plywood,vented and internally braced
Finish	Semi matt black paint (white optional)
Grille	Powder coated perforated steel
Flying hardware	2 x M6 yoke bracket inserts Blanking plate for optional VTH pole mount

Accessories(Sold Separately)

Yoke Horizontal VX5.2/VX6Yoke Horizontal VX5.2/VX6 - WHVTH Top Hat

*independent of limiters and driver protection circuits †Neutrik and powerCON speakON are registered trademarks of Neutrik AG. †Only qualified personnel are allowed to modify the AC-Main cord and to adhere to all applicable national standards.
